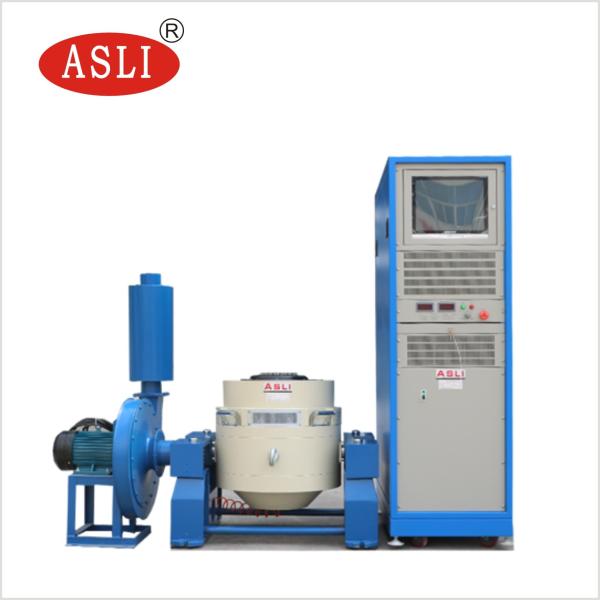

MIL - STD 202 Standard Electrodynamics High Frequency Vibration Shaker Testing

Brand Name : ASLI

Model Number : ES-6

Certification : CE, TUV, BV

Place of Origin : China

MOQ : 1 Set

Price : negotiate

Payment Terms : T/T, Western Union

Supply Ability : 60 sets per year

Delivery Time : 45 workdays

Packaging Details : wooden case

Sine force : 6000N

Frequency Range : 5 Hz to 3000Hz

Max. Acceleration : 100g

Max. Speed : 1.8m/s

Vibration Wave : sine, random, shock

Vibration Directions : Vertical +Horizontal

Contact Now

MIL-STD 202 standard electrodynamics high frequency vibration shaker testing

Application of vibration test equipment:


vibration test system of vibration test Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.


Model
Rated Sine Force (N)
Rated Random
Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed (m/s)
Rated displacement (p-p) mm
Max. Loading (Kg)
moving coil (Kg)
ES-3
3000
3000
3-3500
1000
1.6
25
100
3.5
Φ150
ES-3a
3000
3000
3-3500
400
1.6
40
120
9
Φ230
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
Product Description about electrodynamic shaker:

Electrodynamic type high frequency sine random vibration test machine is widely applied to national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, transportation, home appliances, etc.


Test capacity for Vibration Testing Equipment:


5 Hz to 3000Hz, Fixed frequency, sweep back and forth, sine, random, shock

Vibration testing table Features:

1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency
2 Light armature, high stiffness, 3500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

For Vertical Expander about vibration testing table:

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

MIL - STD 202 Standard Electrodynamics High Frequency Vibration Shaker Testing

For Horizontal Expander:

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

MIL - STD 202 Standard Electrodynamics High Frequency Vibration Shaker Testing
MIL - STD 202 Standard Electrodynamics High Frequency Vibration Shaker Testing
MIL - STD 202 Standard Electrodynamics High Frequency Vibration Shaker Testing
About those electrodynamic shaker , please kindy contact with us, thank you .
