GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber 1150x500x500mm

Product Categories

ASLi (CHINA) TEST EQUIPMENT CO., LTD

Contact Now

GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber 1150x500x500mm

Name: GBT51709 UVA Light UV Accelerated Weathering Aging Test Chamber 1150x500x500mm
Brand: ASLI
Price: 1 USD

Quality GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber 1150x500x500mm for sale

Brand Name : ASLI

Model Number : UV-290

Certification : CE , ISO , SGS , TUV

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 20workdays

Packaging Details : standard export plywood case

Internal Dimension : 1150x500x500mm

Applicable Standard : GB/T5170.9

Temperature Range : RT+15~70C

Temperature Fluctuation : +/- 0.5C

Test Light Source : UVA light

Wave Length of Test light Source : 280~400nm

Shelf : 1 pc

Power : AC220V

Contact Now

UV Aging Testing Machine UV-290.pdf

GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber

Application:

GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber is simulated sunlight damage on the material and product test, widely used in the evaluation of material climate resistant.

Technical Parameters:

Model		UV-290
Internal Dimension WxHxD (mm)		1150x500x500
External Dimension WxHxD (mm)		1400x1600x750
Applicable Standard		GB/T16422,GB/T5170.9
Temperature Range		R.T.+15℃~+70℃
Temperature Fluctuation		±0.5℃
Humidity Range		≥95%R.H.
Environmental Temperature for Use		+5℃~+35℃
Test Light Source		UVA,UVB UV light
Wave Length of Test light Source (nm)		280~400
Center Distance between Sample and Tube (mm)		50±2
Center Distance Between Tubes (mm)		75±2
Material of Internal Case		Stainless steel with sanding polish
Material of External Case		Stainless steel with sanding polish or painting coated
Heating and Humidifier		Electric-heat type steam generator ,heating and humidification
Safety System	Operation Interface	Digital smarts touch key input (Programmable)
	Running Mode	Program/constant running type
	Input	Black panel thermometer.PT-100 Sensor
Standard Configuration		1 pc Stainless steel shelves
Safety Configuration		Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection
Power		AC220V 1 phase 3 lines, 50HZ

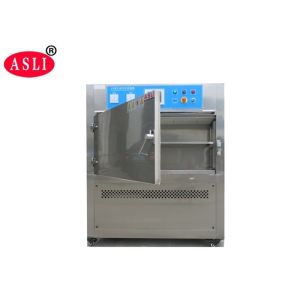

GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber Pictures:

GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber 1150x500x500mm

Company Profile:

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine.GB/T5170.9 UVA Light UV Accelerated Weathering Aging Test Chamber is our star products , and we had obtained the CE certification for this machine .
