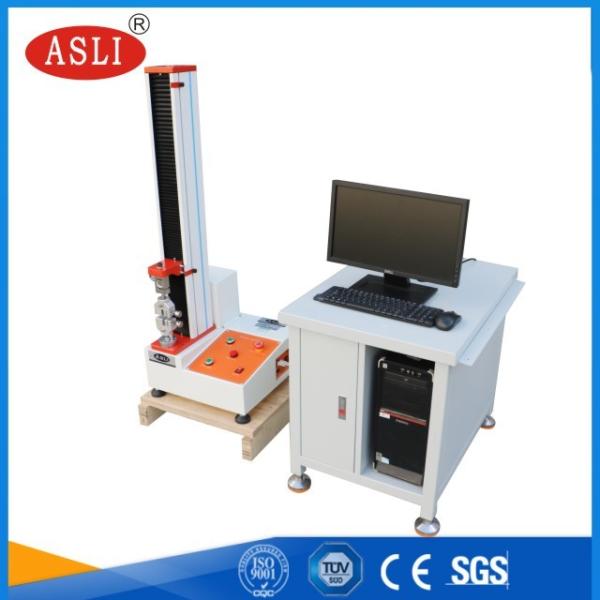

fabric pull tensile strength test machine with 500mm/min testing speed
Application:
The Computer Tensile Test tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force, ect with different fixtures customized according to national and international standards and customer required.
The machine is a kind of electric tensile tester which adopts the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically on micro computer or host computer.
Design parameters :
ASTM D903,GB/T2790/2791/2792,CNS-11888,JIS K6854,PSTC-7
| Technical Parameters |
| Model | AS-PC- Volume |
| Capacity (Kg) | 50,100,200,500,1000,2000,5000,10000,20000 |
| Load Accuracy | 0.5% |
| Load Resolution | 1/100,000 |
| Valid Width (mm) | 400 |
| Max. Route (mm) | 1000(not including clamp) |
| Test Speed (mm/Min.) | 0.1~500(1000) |
| Speed Accuracy | ±0.5% |
| Motor | AC servo motor |
| Volume WxHxD (mm) | 1750x3310x1220 |
| Weight (Kg) | 300 |
| Power | AC220V 1 phase 3 lines |
Pictures for reference:
Features
1. a variety of measurement units, Measure In Imperial & Metric are switchable;
2. the software interface with three languages in Simplified Chinese, Traditional Chinese and English, which can be switched easily.
3. The pattern of Test reports can be self -designated; test data can be displayed directly in the main screen.
4. User-defined Test methods; with experimental data analysis function.
5. a single-screen operation; do not need to switch the screen.
6. comparative mode at the same time to make a number of curve data comparison.
7. High quality, accurate and reliable models with competitive price.
8. Motor system: Panasonic servo motor +Panasonic servo driver +ball screw (Taiwan) +Leeming reduction gears +synchronous belt driver;
9. Computer servo system :Desktop computer servo control tensile tester dedicated
10. Windows interface to test software it can achieve to set speed, load, power time, Breakpoint
proportion, more order control mode and meet different test requirement.
11. Displacement resolution: 0.001mm
12. Safety device: overload emergency stop device, fluctuation travel limit device, leakage automatic broken electricity system, automatic breakpoint stop function.
Please feel free to contact us if any doubt or needs about Metal Tensile Testing machine.
